GHSJ-3L1600/3L2000/3L2600 三至五層共擠薄膜吹膜機組 (IBC 膜泡內冷型)
性能特點
Performance characteristics

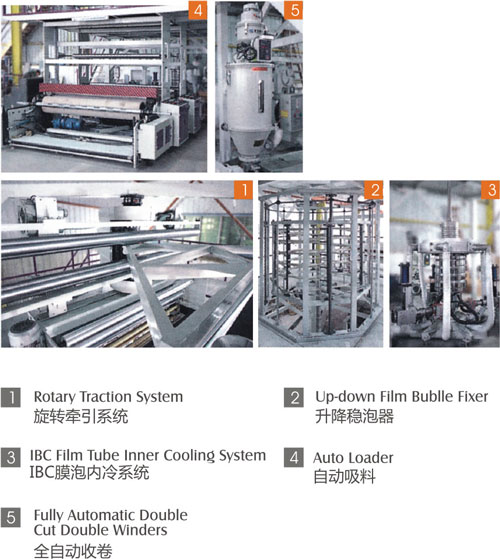

機械部件
PRODUCT GENERALIZATIONS
技術參數
TECHNICAL PARAMETER
主要技術參數/MIAN TECHNICAL PARAMETERS:
| 規格型號 |
Specification / Model |
GHSJ-3l1600 |
GHSJ-3L2000 |
GHSJ-3L2600 |
|
適用原料 |
Suitable Material |
LDPE – LLDPE - H DPE- MLDPE |
LDPE- LLDPE- HDPE -MLDPE |
LDPE- LLDPE –HDPE- MLDPE |
|
產品寬度 |
Film Width(mm) |
1000-1400 |
1400-1800 |
1800-2400 |
|
產品厚度 |
Film Thickness(mm) |
0.03-0.15 |
0.03-0.15 |
0.03-0.15 |
|
最大擠出量 |
Max. ExtrusionOutput(kg/hr) |
130kg/hr |
180kg/hr |
230kg/hr |
|
擠出機 EXTRUDER |
||||
|
螺桿直徑 |
Screw Diameter(mm) |
φ55/60/55 |
φ60/65/60 |
φ65/70/65 |
|
螺桿長徑比 |
Screw L/D Ratio |
28:1 |
28:1 |
28:1 |
|
螺桿材料 |
Screw Material |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
|
料筒材料 |
Cylinder Material |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
SACM-645/38 CRMOALA |
|
料筒冷卻 |
Cylinder Cooling |
180w×6 |
250w×6 |
250w×6 |
|
主機功率 |
Driving Motor(kw) |
15kw/18.5kw/15kw |
18.5kw/22kw/18.5kw |
22kw/30kw/22kw |
|
料筒溫度控制 |
Temperature Control |
3 |
3 |
4 |
|
平均耗電量 |
Average Power-consume(kw) |
70 |
90 |
120 |
|
模頭 DIE HEAD |
||||
|
?？? |
Die Size(mm) |
φ350 |
φ450 |
φ600 |
|
溫度控制 |
Temperature Control |
3 |
3 |
3 |
|
風環 |
Air Ring |
1 |
1 |
1 |
|
風機 |
Air Blower(kw) |
5.5 |
7.5 |
11 |
|
牽引裝置 TAKE-UP UNIT |
||||
|
牽引輥寬 |
Roller width |
φ160×1600 |
φ200×2000 |
φ200×2800 |
|
有效引取膜寬 |
Effective width |
1400mm |
1800mm |
2600mm |
|
牽引速度 |
Take-up speed (m/min) |
10-65 |
10-65 |
10-65 |
|
牽引電機功率 |
Take-up motor (kw) |
1.5 |
2.2 |
3.7 |
|
收卷裝置 WINDING UNIT |
||||
|
收卷電機功率 |
Winding Motor(kw) |
2.2-2 |
2.2-2 |
3-2 |
|
收卷速度 |
WindingSpeed(m/min) |
10-65 |
10-65 |
10-65 |
|
外形尺寸 |
Overall Dimension(L×W×H) |
6.5×2.9×8.8m |
7.5×3.4×9.8m |
7.8×4.5×12.8m |

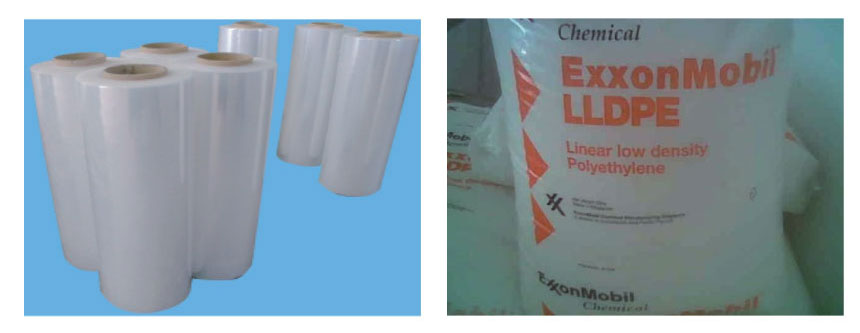

產品樣品
PRODUCT GENERALIZATIONS
